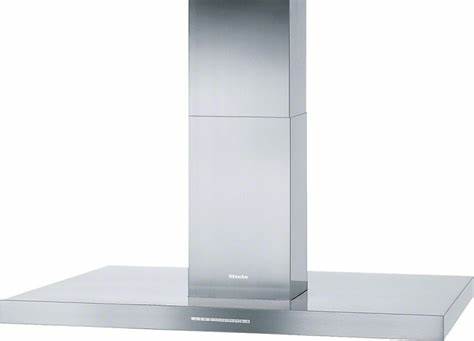

DA 424-6 Puristic Plus
Technische details
Eilandschouwafzuigkap |
Kleur | Roestvrij staal |
RAL-kleur op verzoek verkrijgbaar | |
Individuele aanpassingen mogelijk |
Soort luchtafvoer | Luchtafvoer |
Elektronische besturing | |
Tiptoetsen | |
Miele@mobile-app | |
Vermogensstanden (exclusief Intensiefstand) | 3 |
Intensiefstand | |
Programmeerbare in-/ uitschakelautomaat | |
Luchtafzuiging achteraf 5/15 min. | |
Verzadiging vetfilter programmeerbaar | |
Akoestisch pakket |
Gemakkelijk te reinigen CleanCover-afzuigunit |
Miele@home | |
MobileControl | |
Automatische functie Con@ctivity 2.0 (Zigbee) |
Aantal vaatwasserbestendige roestvrijstalen vetfilters | 6 |
Led | |
Aantal lampen x Watt | 4 x 3 W |
Lichtsterkte in Lx | 460 |
Kleurtemperatuur in K | 3.500 |
Tweevoudig luchtaanzuigsysteem | |
Wisselstroommotor (AC-motor) |
Afzuigcapaciteit luchtafvoer bij stand 1 (m³/h) | 200 |
Afzuigcapaciteit luchtafvoer bij stand 2 (m³/h) | 320 |
Afzuigcapaciteit luchtafvoer bij stand 3 (m³/h) | 480 |
Afzuigcapaciteit circulatie bij Intensiefstand (m³/h) | 700 |
Geluidsniveau stand 1 (dB(A) re1pW) | 40 |
Geluidsniveau stand 2 (dB(A) re1pW) | 49 |
Geluidsniveau stand 3 (dB(A) re1pW) | 57 |
Geluidsniveau Intensiefstand (dB(A) re1pW) | 65 |
Geluidsdrukniveau Stand 1 (dB(A) re20µPa) | 22 |
Geluidsdrukniveau Stand 2 (dB(A) re20µPa) | 31 |
Geluidsdrukniveau Stand 3 (dB(A) re20µPa) | 39 |
Geluidsdrukniveau Intensiefstand (dB(A) re20µPa) | 48 |
Uitschakelbeveiliging |
Totale hoogte afzuigkap luchtafvoersysteem en externe ventilator in mm | 690 |
Totale hoogte afzuigkap luchtafvoersysteem en externe ventilator in mm | 990 |
Corpusbreedte in mm | 1.198 |
Corpushoogte in mm | 70 |
Corpusdiepte in mm | 698 |
Minimale afstand boven elektrische kookplaten in mm | 450 |
Minimale afstand boven gaskookplaten (max 12,6 gezamenlijk vermogen, gasbrander ? 4,5 kW) in mm | 650 |
Nettogewicht in kg | 42,0 |
Vaste aansluiting | |
Totale aansluitwaarde in kW | 0,21 |
Spanning in Volt | 230 |
Zekering in A | 10 |
Frequentie in Hz | 50 |
Aansluiting op aantal fasen | 1 |
Luchtafvoeraansluiting bovenzijde | |
Diameter ventilatierooster in mm | 150 |
Telescopische afvoerschacht |
Terugslagklep | |
Draadloze stick Con@ctivity 2.0 voor kookplaat | XKS 3000 Z |
